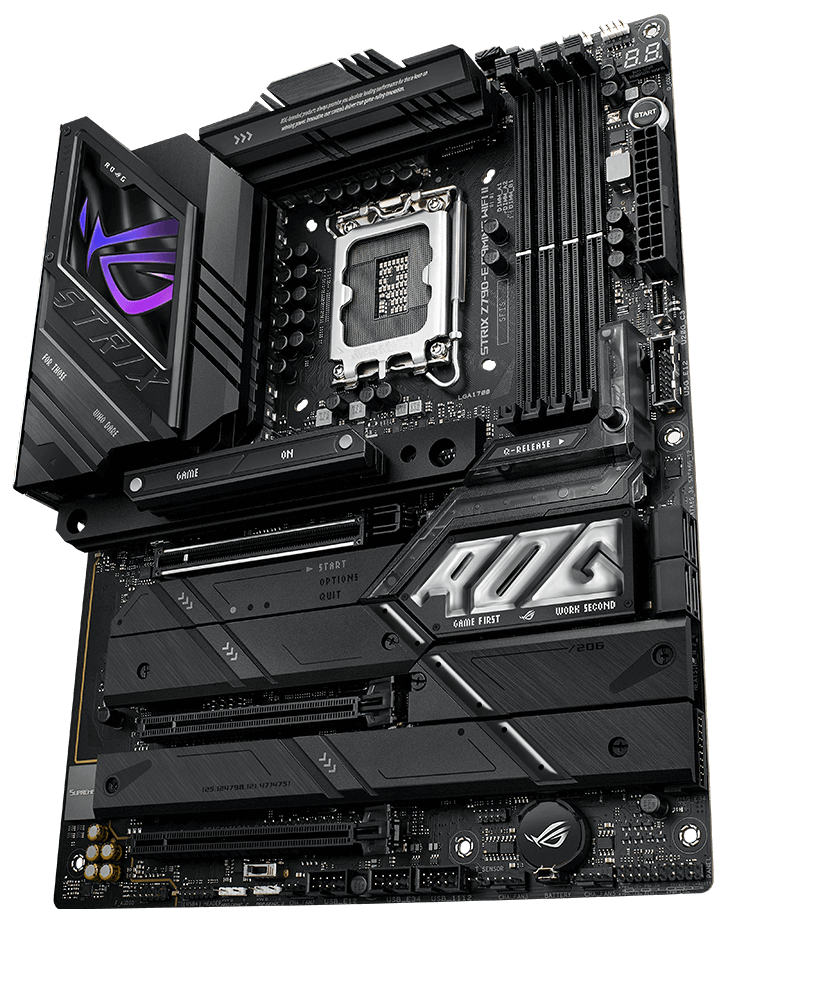

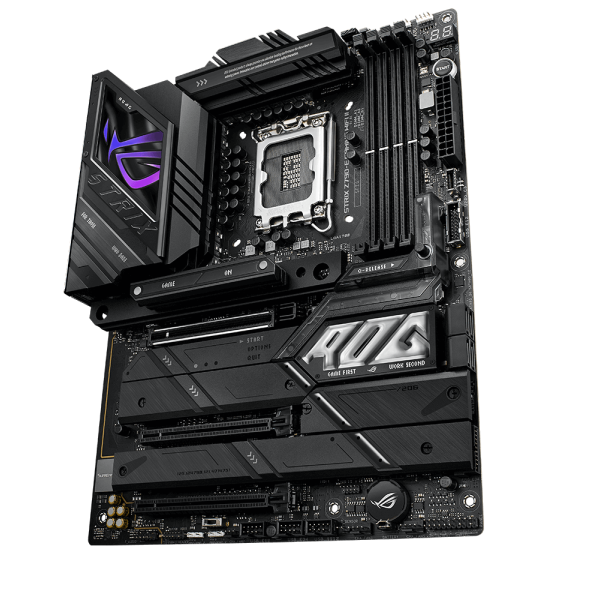

ASUS MOTHERBOARD DDR5 ROG STRIX Z790-E GAMING WIFI 2

Central Processing Unit (CPU):
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold, and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
For a list of supported CPUs, visit the manufacturer’s website.
Chipset:
Intel® Z790 Chipset
Memory:
4 x DIMM slots, maximum 192GB
DDR5 memory support with varying speeds and configurations*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP) and ASUS Enhanced Memory Profile II (AEMP II)
*Refer to CPU/Memory Support list for details.
Graphics:
1 x DisplayPort**
1 x HDMI™ port***
Graphics specifications vary by CPU type.
**Supports up to 8K@60Hz (DisplayPort 1.4).
***Supports up to 4K@60Hz (HDMI 2.1).
Expansion Slots:
Intel® CoreTM Processors (14th & 13th & 12th Gen)*: 1 x PCIe 5.0 x16 slot (x16 mode)**
Intel® Z790 Chipset: 2 x PCIe 4.0 x16 slots (x4 mode)
Storage:
Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Rapid Storage Technology supports RAID configurations.
Ethernet:
1 x Intel® 2.5Gb Ethernet with ASUS LANGuard
Wireless & Bluetooth:
Intel® Wi-Fi 7* and Bluetooth® v5.4****
*Compatible with Windows 11 or later.
**Wi-Fi 7 features depend on Windows 11 2024 Platform or later.
***Regulatory and band variations apply.
USB:
Rear USB (Total 12 ports): 1 x USB 20Gbps port (Type-C®), 11 x USB 10Gbps ports (10 x Type-A + 1 x Type-C®)
Front USB (Total 11 ports): 1 x USB 20Gbps (Type-C®), 2 x USB 5GGps headers, 3 x USB 2.0 headers
*USB Type-C® power delivery specifications apply.
Audio:
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
Various audio features including SupremeFX Shielding Technology and Gold-plated jacks.
Back Panel I/O Ports:
Various USB ports, DisplayPort, HDMI™ port, Wi-Fi Module, Ethernet port, audio jacks, BIOS FlashBack™ button, Clear CMOS button.
Internal I/O Connectors:
Fan, cooling, power, storage, and USB headers included.
Miscellaneous:
Addressable Gen 2 headers, PCIe Mode Switch, AURA RGB header, etc.
Special Features:
Extreme OC Kit, Extreme Engine Digi+, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, AURA Sync, Front Panel USB 20Gbps with PD Fast Charge Support.
Software Features:
Various ASUS and ROG exclusive software included.
UEFI BIOS:
Features AI Overclocking Guide and ASUS EZ DIY functionalities.
Manageability:
WOL by PME, PXE
Accessories:
Includes cables, cooling kit, Wi-Fi antenna, cable ties, etc.
Package Documentation:
Quick start guide included.
Operating System:
Windows® 11, Windows® 10 64-bit
Form Factor:
ATX Form Factor: 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
