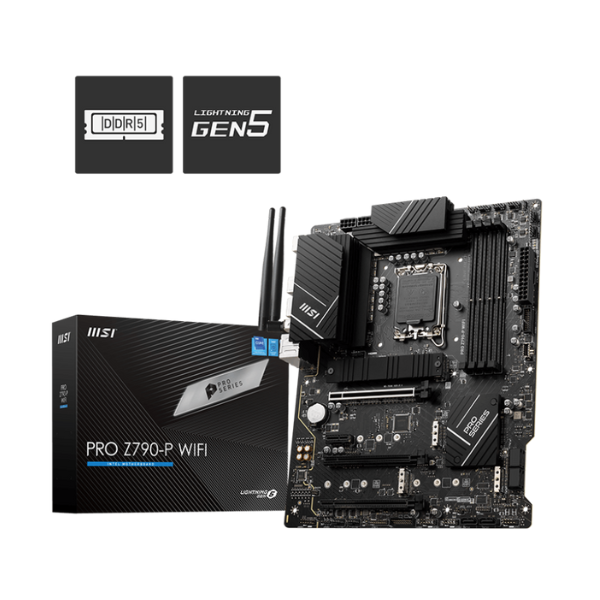

MSI – INTEL – MOTHERBOARD PRO Z790-P WIFI DDR5

MSI INTEL MOTHERBOARD PRO Z790-P WIFI DDR5
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5 7000+MHz (OC)
Enhanced Power Design: 14+1+1 DRPS with 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
SPECIFICATIONS:
Model Name
PRO Z790-P WIFI
CPU Support
Support Intel®
Core™ 14th/ 13th/ 12th Gen Processors, Intel®
Pentium®
Gold and Celeron®
Processors
CPU Socket
LGA 1700
Chipset
Intel®
Z790 Chipset
Expansion Slots
1x PCIe 5.0 x16 slot
1x PCIe 4.0 x16 slot
2x PCIe 3.0 x1 slots
Display Interface
Support 4K@60Hz as specified in HDMITM 2.1, DisplayPort 1.4
– Requires Processor Graphics
Memory Support
4 DIMMs, Dual Channel DDR5 7000+MHz (OC)
Storage
4x M.2 Gen4 x4 64Gbps slots,
6x SATA 6Gbps ports
USB ports
1x USB 3.2 Gen 2×2 20G (1 Type-C),
2x USB 3.2 Gen 2 10Gbps (1 Type-A + 1 Type-C),
6x USB 3.2 Gen 1 5Gbps (6 Type-A),
8x USB 2.0
LAN
Intel®
2.5G LAN
WiFi / BT
Intel®
Wi-Fi 6E, Bluetooth 5.3
Audio
8-Channel (7.1) HD Audio with Audio Boost
